Premium Handwheels

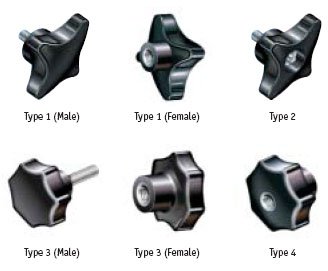

Black Phenolic. Types 1 and 3 - Male Handwheels with plated steel stud. Types 1 and 3 - Female Handwheels with plated steel insert. Types 2 and 4 - Female bush inserted allows male thread to pass through.
| best.nummer | typ | Handwheel Diameter (mm) | Thread | Stud Length | st. i förp. | pris/paket/st | pris/st |
|---|---|---|---|---|---|---|---|
| 462051 | 1 | 32 | M6 | 15 | 200 | 14 SEK | 24 SEK |
| 462052 | 1 | 32 | M6 | 30 | 200 | 15 SEK | 25 SEK |
| 462053 | 1 | 40 | M8 | 20 | 125 | 22 SEK | 36 SEK |
| 462054 | 1 | 40 | M8 | 30 | 125 | 23 SEK | 37 SEK |
| 466406 | 1 | 50 | M8 | 25 | 100 | 18 SEK | 29 SEK |
| 462055 | 1 | 50 | M10 | 30 | 100 | 32 SEK | 52 SEK |
| 462056 | 1 | 50 | M10 | 40 | 100 | 34 SEK | 55 SEK |
| 466407 | 1 | 60 | M10 | 30 | 100 | 25 SEK | 35 SEK |
| 466408 | 1 | 80 | M12 | 40 | 50 | 27 SEK | 44 SEK |
| 462057 | 3 | 32 | M6 | 15 | 200 | 17 SEK | 28 SEK |
| 462058 | 3 | 32 | M6 | 20 | 200 | 18 SEK | 29 SEK |
| 462059 | 3 | 32 | M6 | 30 | 200 | 18 SEK | 30 SEK |
| 462060 | 3 | 40 | M8 | 20 | 100 | 31 SEK | 50 SEK |
| 462061 | 3 | 40 | M8 | 30 | 100 | 25 SEK | 42 SEK |
| 462062 | 3 | 50 | M8 | 30 | 80 | 34 SEK | 55 SEK |
| 462063 | 3 | 50 | M10 | 30 | 80 | 38 SEK | 62 SEK |
| 462064 | 3 | 63 | M8 | 20 | 50 | 50 SEK | 78 SEK |
| 462065 | 3 | 63 | M10 | 30 | 40 | 49 SEK | 77 SEK |
| 462066 | 3 | 63 | M12 | 25 | 40 | 54 SEK | 89 SEK |
| best.nummer | typ | Handwheel Diameter (mm) | Thread | st. i förp. | pris/paket/st | pris/st |
|---|---|---|---|---|---|---|
| 462067 | 1 | 32 | M6 | 1000 | 16 SEK | 27 SEK |
| 462068 | 1 | 40 | M8 | 500 | 23 SEK | 38 SEK |
| 466403* | 1 | 50 | M8 | 100 | 15 SEK | 24 SEK |
| 462069 | 1 | 50 | M10 | 250 | 40 SEK | 66 SEK |
| 466404* | 1 | 60 | M10 | 100 | 16 SEK | 27 SEK |
| 462070 | 1 | 63 | M10 | 80 | 51 SEK | 83 SEK |
| 462071 | 1 | 63 | M12 | 100 | 51 SEK | 81 SEK |
| 466405* | 1 | 80 | M12 | 100 | 30 SEK | 50 SEK |
| 462072 | 1 | 80 | M16 | 35 | 89 SEK | 139 SEK |
| 462073 | 3 | 32 | M5 | 250 | 15 SEK | 25 SEK |
| 462074 | 3 | 32 | M6 | 500 | 16 SEK | 27 SEK |
| 462075 | 3 | 40 | M6 | 200 | 25 SEK | 42 SEK |
| 462076 | 3 | 40 | M8 | 250 | 25 SEK | 42 SEK |
| 462077 | 3 | 50 | M8 | 100 | 35 SEK | 58 SEK |
| 462078 | 3 | 50 | M10 | 250 | 32 SEK | 53 SEK |
| 462079 | 3 | 50 | M12 | 100 | 43 SEK | 71 SEK |
| 462080 | 3 | 63 | M8 | 50 | 47 SEK | 78 SEK |
| 462081 | 3 | 63 | M10 | 50 | 51 SEK | 84 SEK |
| 462082 | 3 | 63 | M12 | 100 | 53 SEK | 83 SEK |
| 462083 | 3 | 80 | M10 | 25 | 83 SEK | 130 SEK |
| 462084 | 3 | 80 | M12 | 25 | 88 SEK | 139 SEK |
| 462085 | 3 | 80 | M16 | 100 | 80 SEK | 125 SEK |
* With aluminium insert.
| best.nummer | typ | Handwheel Diameter (mm) | Thread | st. i förp. | pris/paket/st | pris/st |
|---|---|---|---|---|---|---|
| 466409 | 2 | 50 | M8 | 100 | 16 SEK | 28 SEK |
| 466410 | 2 | 60 | M10 | 100 | 22 SEK | 36 SEK |
| 466411 | 2 | 80 | M12 | 100 | 29 SEK | 48 SEK |
| 462086 | 4 | 30 | M5 | 50 | 42 SEK | 69 SEK |
| 462087 | 4 | 30 | M6 | 50 | 42 SEK | 69 SEK |
| 462088 | 4 | 30 | M8 | 50 | 47 SEK | 77 SEK |
| 462089 | 4 | 40 | M6 | 50 | 47 SEK | 77 SEK |
| 462090 | 4 | 40 | M8 | 50 | 49 SEK | 81 SEK |
| 462091 | 4 | 40 | M10 | 50 | 55 SEK | 90 SEK |
| 462092 | 4 | 50 | M10 | 25 | 60 SEK | 95 SEK |
| 462093 | 4 | 50 | M12 | 25 | 67 SEK | 105 SEK |
| 462094 | 4 | 60 | M10 | 20 | 74 SEK | 115 SEK |
| 462095 | 4 | 60 | M12 | 20 | 81 SEK | 127 SEK |
Prices are without VAT. If specified order number, please, it will add it to the selected type of goods. We will be glad to send you any quantity. In case of large subscriptions, please contact us.
