Bridge Handles

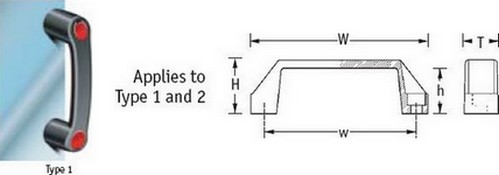

Black Nylon. Impact- resistant material, yet lightweight and versatile. Type 1: Plain Bore: for use with a socket head cap screw. Type 1 Threaded Insert: brass threaded insert for underside attachment. Type 1 only: Coloured caps available as separate items for aesthetic appearance or colour- coding requirements. Type 2: Rectangular base and plain bore for use with a socket head cap screw.
Plain Bore (Type 1)| best.nummer | dimensioner | Thread or Bore | To fit socket head cap screw | st. i förp. | pris/paket/st | pris/st |
|---|
| W | H | w | h | T |
|---|
| 466308* | 119,5 | 35 | 93,4 | 29 | 26 | 6,5 | M6 | 100 pc | 18 SEK | 30 SEK |
| 466309* | 145 | 40 | 117 | 34 | 29 | 8,5 | M6 | 100 pc | 24 SEK | 40 SEK |
| 466310+ | 163 | 45 | 132 | 38 | 31 | 8,5 | M8 | 100 pc | 29 SEK | 48 SEK |
Use with: *Small Colour Caps, +Large Colour Caps
Threaded Insert (Type 1)| best.nummer | dimensioner | Thread or Bore | st. i förp. | pris/paket/st | pris/st |
|---|
| W | H | w | h | T |
|---|
| 466311* | 119,5 | 35 | 93,4 | 29 | 26 | M6 | 100 pc | 32 SEK | 53 SEK |
| 466312* | 145 | 40 | 117 | 34 | 29 | M6 | 100 pc | 52 SEK | 86 SEK |
| 466313* | 145 | 40 | 117 | 34 | 29 | M8 | 100 pc | 52 SEK | 86 SEK |
| 466314+ | 163 | 45 | 132 | 38 | 31 | M8 | 100 pc | 50 SEK | 78 SEK |
Use with: *Small Colour Caps, +Large Colour Caps
Plain Bore (Type 2)| best.nummer | dimensioner | Thread or Bore | To fit socket head cap screw | st. i förp. | pris/paket/st | pris/st |
|---|
| W | H | w | h | T |
|---|
| 468234 | 140 | 40 | 122 | 32 | 24 | 6,2 | - | 50 pc | 47 SEK | 78 SEK |
| 466315 | 134 | 41 | 117 | 35 | 26 | 8 | M8 | 100 pc | 51 SEK | 85 SEK |
Small Colour Caps| best.nummer | Color | st. i förp. | pris/paket/st | pris/st |
|---|
| 466316 | Red | 200 pc | 0,84 SEK | 1,4 SEK |
| 466317 | Blue | 200 pc | 0,84 SEK | 1,4 SEK |
| 466318 | Yellow | 200 pc | 0,8 SEK | 1,3 SEK |
| 466319 | Black | 200 pc | 0,8 SEK | 1,3 SEK |
| 466320 | White | 200 pc | 0,84 SEK | 1,4 SEK |
| 466321 | Green | 200 pc | 0,84 SEK | 1,4 SEK |
| 466322 | Grey | 200 pc | 0,84 SEK | 1,4 SEK |
| 466323 | orange | 200 pc | 0,84 SEK | 1,4 SEK |
Large Colour Caps| best.nummer | Color | st. i förp. | pris/paket/st | pris/st |
|---|
| 466324 | Red | 200 pc | 0,84 SEK | 1,4 SEK |
| 466325 | Blue | 200 pc | 0,84 SEK | 1,4 SEK |
| 466326 | Yellow | 200 pc | 0,84 SEK | 1,4 SEK |
| 466327 | Black | 200 pc | 0,84 SEK | 1,4 SEK |
| 466328 | White | 200 pc | 0,84 SEK | 1,4 SEK |
| 466329 | Green | 200 pc | 0,84 SEK | 1,4 SEK |
| 466330 | Grey | 200 pc | 0,84 SEK | 1,4 SEK |
| 466331 | orange | 200 pc | 0,84 SEK | 1,4 SEK |
Colour Caps for use with Type 1 only
The following are types of polyamide with glass fiber. Types 3-5 with female threaded brass bush.
Type 3| best.nummer | dimensioner | Thread or Bore | st. i förp. | pris/paket/st | pris/st |
|---|
| W | H | w | h | T |
|---|
| 465941 | 132 | 50 | 117 | 34 | 25 | M6 | 100 pc | 92 SEK | 143 SEK |
| 465942 | 132 | 50 | 117 | 34 | 25 | M8 | 100 pc | 95 SEK | 148 SEK |
Threaded Insert (Type 4)| best.nummer | dimensioner | Thread or Bore | st. i förp. | pris/paket/st | pris/st |
|---|
| W | H | w | h | T |
|---|
| 465939 | 156 | 56 | 132 | 33 | 34 | M8 | 100 pc | 126 SEK | 197 SEK |
| 465940 | 156 | 56 | 132 | 33 | 34 | M10 | 100 pc | 126 SEK | 197 SEK |
Threaded Insert (Type 5)| best.nummer | dimensioner | Thread or Bore | st. i förp. | pris/paket/st | pris/st |
|---|
| W | H | w | h | T |
|---|
| 465933 | 137 | 41 | 120 | 39 | 28 | M6 | 100 pc | 89 SEK | 139 SEK |
| 465934 | 137 | 41 | 120 | 39 | 28 | M8 | 100 pc | 89 SEK | 139 SEK |
Prices are without VAT. If specified order number, please, it will add it to the selected type of goods. We will be glad to send you any quantity. In case of large subscriptions, please contact us.
