Compression Action Panel Latches
Black or Silver Powder-Coated Die-cast Zinc.
Lock turns clockwise, closes latch and then compresses the door tight shut.
Compression action gives vibration resistance.

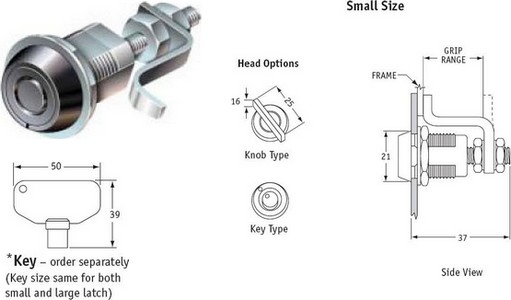

.Two head options available in two sizes.
Small Size -Black| best.nummer | Grip Range | Max. Panel Thickness | st. i förp. | pris/st | pris/st |
|---|
| Knob Type | Key Type | Min. | Max. |
|---|
| 500086 | 500078 | 9,5 | 12,7 | 13 | 1 | 553 SEK | 553 SEK |
| 500087 | 500079 | 12,7 | 15,9 | 13 | 1 | 553 SEK | 553 SEK |
| 500088 | 500080 | 15,9 | 19 | 13 | 1 | 554 SEK | 554 SEK |
| 500089 | 500081 | 19 | 22,2 | 13 | 1 | 553 SEK | 553 SEK |
Large Size - Black| best.nummer | Pawl Forwand | Pawl Reversed | Max. Panel Thickness | st. i förp. | pris/st | pris/st |
|---|
| 8mm Hex | Key Type | Min. | Max. | Min. | Max. |
|---|
| 500093 | 500099 | 11,4 | 27,2 | 66,3 | 76,2 | 18 | 1 | 597 SEK | 597 SEK |
| 500094 | 500100 | 25,4 | 41,1 | 52,6 | 68,3 | 18 | 1 | 597 SEK | 597 SEK |
| 500095 | 500101 | 38,9 | 54,6 | 38,9 | 54,6 | 18 | 1 | 597 SEK | 597 SEK |
Large Size - Silver| best.nummer | Pawl Forwand | Pawl Reversed | st. i förp. | pris/st | pris/st |
|---|
| 8mm Hex | Key Type | Min. | Max. | Min. | Max. |
|---|
| 500096 | 500102 | 11,4 | 27,2 | 66,3 | 76,2 | 1 | 616 SEK | 616 SEK |
| 500097 | 500103 | 25,4 | 41,1 | 52,6 | 68,3 | 1 | 616 SEK | 616 SEK |
| 500098 | 500104 | 38,9 | 54,6 | 38,9 | 54,6 | 1 | 616 SEK | 616 SEK |
* Key - order separately (Key size same for both small and large latch)
| best.nummer | typ | st. i förp. | pris/st |
|---|
| 500092 | Key for Small Size | 1 | 151 SEK |
| 500105 | Key for Large Size | 1 | 151 SEK |
Optional Pull Tab - order separately. Pull Tab - Large Size only
| best.nummer | st. i förp. | pris/st |
|---|
| 500106 | 1 | 92 SEK |
Prices are without VAT. If specified order number, please, it will add it to the selected type of goods. We will be glad to send you any quantity. In case of large subscriptions, please contact us.
